subrela.plot.matplotlib.draw_dendrogram function

subrela.plot.matplotlib.draw_dendrogram(ax, leaf_data, tree_data, cut_data, palette=None, orientation='vertical', tree_kws=None, cut_kws=None)

Draw a dendrogram.

Parameters

• ax (matplotlib.axes.Axes) – Subplot on which a dendrogram is drawn.

• leaf_data (pandas.DataFrame) – Data of leaves returned by subrela.plot.get_dendrogram_data function.

• tree_data (pandas.DataFrame) – Data of tree lines returned by subrela.plot.get_dendrogram_data function.

• cut_data (pandas.DataFrame) – Data of cut lines returned by subrela.plot.get_dendrogram_data function.

• palette (list or None, optional) – Color palette for groups. If None, taken from matplotlib.rcParams['axes.prop_cycle'].

• orientation ({'vertical', 'horizontal'}, optional) – Orientation of a tree. If 'vertical', the height direction of a tree corresponds to the y axis. If 'horizontal', it corresponds to the x axis.

• tree_kws (dict or None, optional) – Keyword argumsnts passed to matplotlib.axes.Axes.plot method for drawing tree lines.

• cut_kws (dict or None, optional) – Keyword arguments passed to matplotlib.axes.Axes.plot method for drawing cut lines.

Returns

• tree_lines (list[matplotlib.lines.Line2D]) – Tree lines.

• cut_lines (list[matplotlib.lines.Line2D]) – Cut lines.

Notes

A default color of a tree is tree_kws['color']. If it does not exist, palette[0] is used and group colors are selected from palette[1:].

If neither key 'color' nor key 'c' is in cut_kws, 'k' is set to 'color'. If neither key 'linestyle' nor key 'ls' is in cut_kws, '--' is set to 'linestyle'.

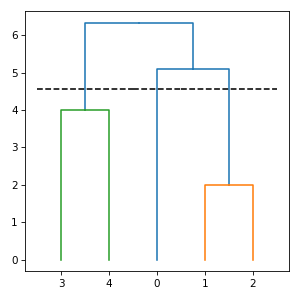

Examples

import numpy
import matplotlib.pyplot
from subrela.clustering import get_clusters
from subrela.plot import get_dendrogram_data
from subrela.plot.matplotlib import draw_dendrogram

X = numpy.array([[0, -5, -5, 6, 6], [0, -1, 1, -2, 2]])

Z = get_clusters(X)
leaf_data, _, tree_data, cut_data = get_dendrogram_data(
    Z, groups=[0, 5, 6])

_, ax = matplotlib.pyplot.subplots(figsize=(4, 4))
draw_dendrogram(ax, leaf_data, tree_data, cut_data)
matplotlib.pyplot.show()

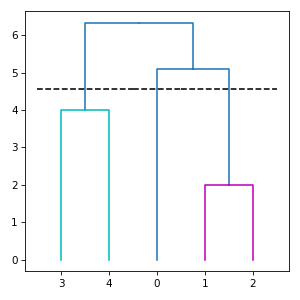

Change colors:

import numpy
import matplotlib.pyplot
from subrela.clustering import get_clusters
from subrela.plot import get_dendrogram_data
from subrela.plot.matplotlib import draw_dendrogram

X = numpy.array([[0, -5, -5, 6, 6], [0, -1, 1, -2, 2]])

Z = get_clusters(X)
leaf_data, _, tree_data, cut_data = get_dendrogram_data(
    Z, groups=[0, 5, 6])

_, ax = matplotlib.pyplot.subplots(figsize=(4, 4))
draw_dendrogram(ax, leaf_data, tree_data, cut_data, palette=['m', 'c'])
matplotlib.pyplot.show()

Draw horizontally:

import numpy
import matplotlib.pyplot
from subrela.clustering import get_clusters
from subrela.plot import get_dendrogram_data
from subrela.plot.matplotlib import draw_dendrogram

X = numpy.array([[0, -5, -5, 6, 6], [0, -1, 1, -2, 2]])

Z = get_clusters(X)
leaf_data, _, tree_data, cut_data = get_dendrogram_data(
    Z, groups=[0, 5, 6])

_, ax = matplotlib.pyplot.subplots(figsize=(4, 4))
draw_dendrogram(ax, leaf_data, tree_data, cut_data,
                orientation='horizontal')
matplotlib.pyplot.show()
